Product Description
Widespread water detection
- Detects water on a floor or false ceiling
- Sends Sensaphone into alarm when water is detected
- Includes 10’ of water sensing rope
- Up to nine additional lengths of water rope can be added for an expanded the water detection area
- Common uses include: burst pipes that leak water, leaking AC unit, bad HVAC compressor, any water leak
- Required RJ45 patch cable powers and connects sensor to Sensaphone

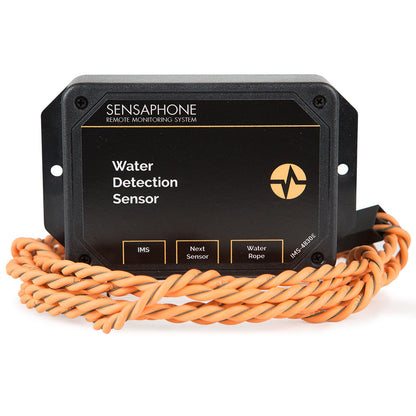

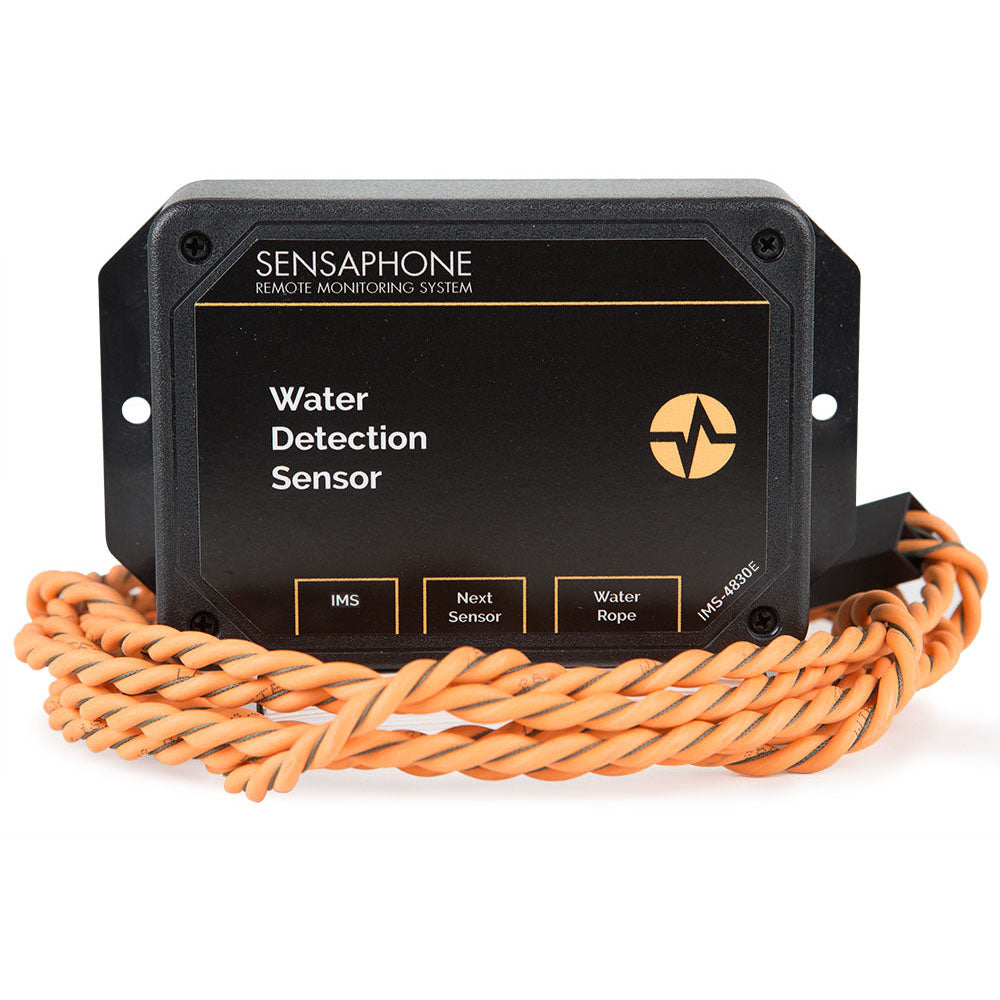

The IMS Zone Water Detection Sensor is used exclusively with the Sensaphone IMS systems to monitor for the presence of water on a floor or in a false ceiling. When the included 10’ water rope comes in contact with water, it will trigger the Sensaphone to go into alarm. This sensor is ideal for use in homes, businesses or anywhere that is susceptible to flooding or water leaks. The connection from the interface to the IMS system can use an existing CAT5 network wiring infrastructure, which powers the sensor and allows it to be installed in locations away from the IMS host device.
Technical Specifications

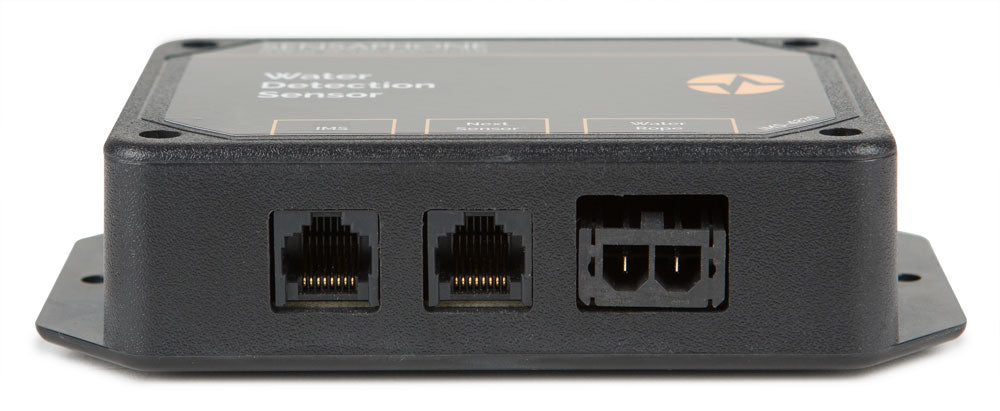

Connection: RJ45
Housing: Plastic
Dimensions: 5.5 x 3.3 x 1.4" | 140 x 83 x 33mm
Sensor Series: IMS Solution
Notes: Up to ten water ropes can be cascaded from a single sensor
Downloads
IMS Solution Zone Water Detection Sensor Sales Brochure
IMS Solution Zone Water Detection Water Rope Sales Brochure
