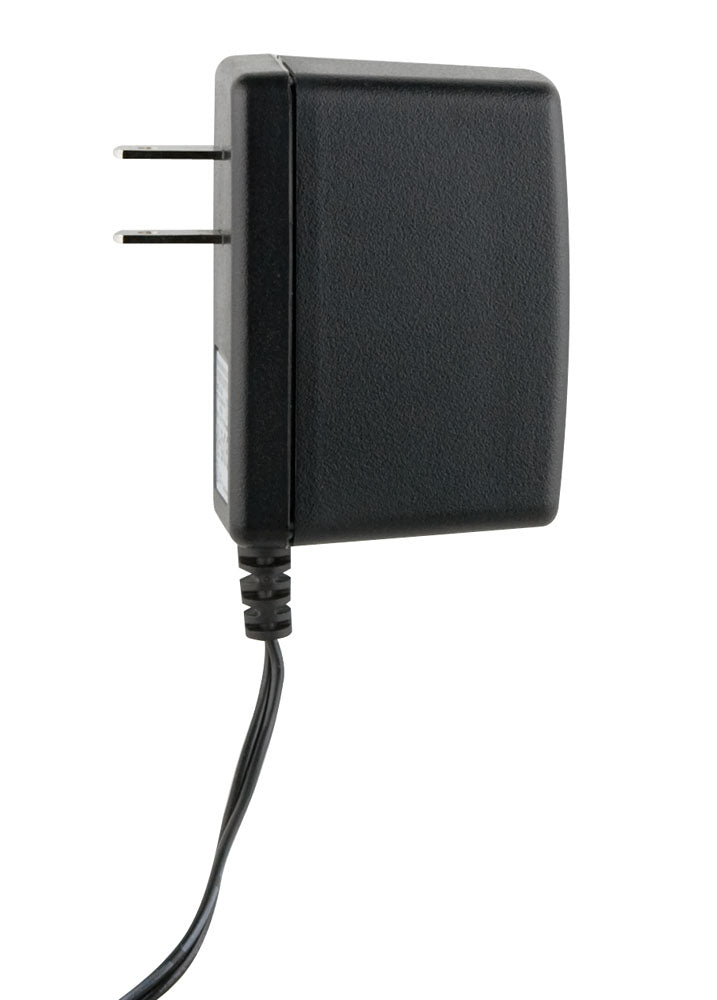

  • Sensaphone FGD-0053 24VDC Power Supply

A 24V power supply for use with most 4-20mA sensors

This device provides two parallel 24V outputs that can be used to power up to two 4-20mA transducers or any 24VDC device that requires battery backup. The unit includes (4) AA NiMh rechargeable batteries that will keep the power supply running for several hours in the event of a power failure. Typical backup times are dependent on total current required by sensors.

  • 24VDC output for powering 4-20 loops
  • 5' long cord
  • 2-prong North-American polarized connector
  • Input voltage: 90V-264V
  • Short-circuit protection
  • Output regulation: +/- 5%
  • Operating temperature: 0° to 40°C  |  32° to 104°F
  • Output leads are stripped, tinned and labeled for polarity

* Select all required configurable options to continue:

  • The power supply comes standard with a U.S. style plug for use on 120v/60hz power. The international kit includes a variety of different style plugs for use outside of the U.S.
