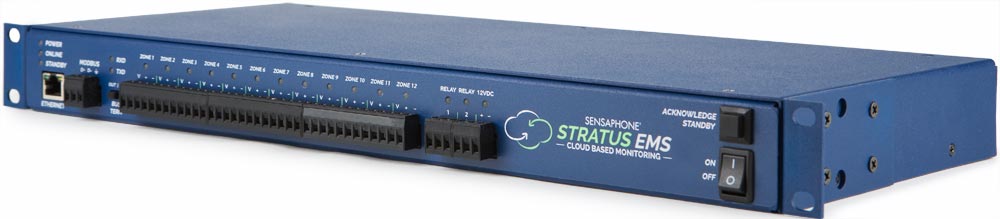

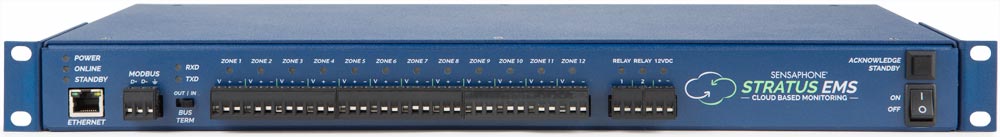

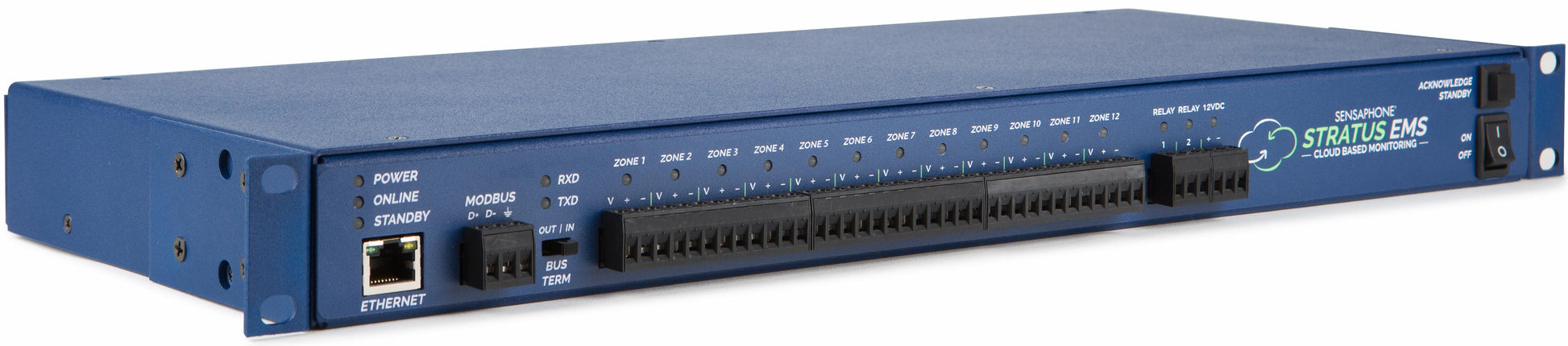

Sensaphone Stratus EMS Monitoring System

Product Name

Sensaphone Stratus EMS Monitoring System
Sensaphone Stratus EMS LCD

Communication Method

Ethernet

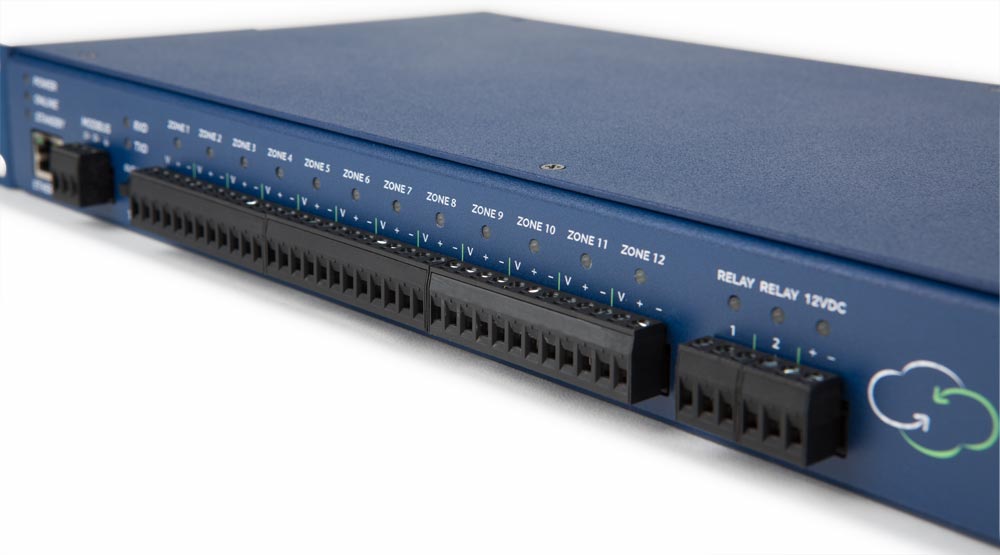

Number of Inputs

12 Digital or Analog & 64 Modbus Registers

Input Types

Contact, 2.8K, 10K, 4-20mA, Modbus
24V power for current loops

Output Relay

Two low voltage NO/NC relay output
Manual or automatic alarm switching
24V power for current loops

Temperature Sensing Range

-109° to 168°F | -85° to 76°C

Remote Access

Website and mobile app to access status and programming

Local Access

LEDs for Alarm Status, Power Status, and Ethernet link

Alarm Notification

An unlimited number of email, text or phone calls

Data Logging

Unlimited samples securely stored on the Sentinel servers
Programmable sampling Interval - 5 mins to 24 hrs

Power Supply

Stratus EMS: 90-214VAC/12VAC 50/60Hz 30W plug-in transformer w/6’ cord
Built in battery backup
Stratus EMS LCD: 9VDC 1.5A (100-240VAC 50/60Hz to 9VDC 2.2A adapter included)

Battery Backup Time

Up to 30 hours of battery backup time

Physical

Stratus EMS:
Without Mounting Ears: 17.6 x 7.9 x 1.7” | 47 x 200 x 43mm
With Mounting Ears: 18.8 x 7.9 x 1.7” | 477 x 200 x 43mm
6lbs | 2.7kg
Stratus EMS LCD:
18.85 x 3.25 x 1.7" | 479 x 83 x 43mm

Rack Mount Size

1U rackmount
2U rackmount with Optional LCD

API Data Interchange Formats

JSON, HTTPS, POST, REST web services, cURL

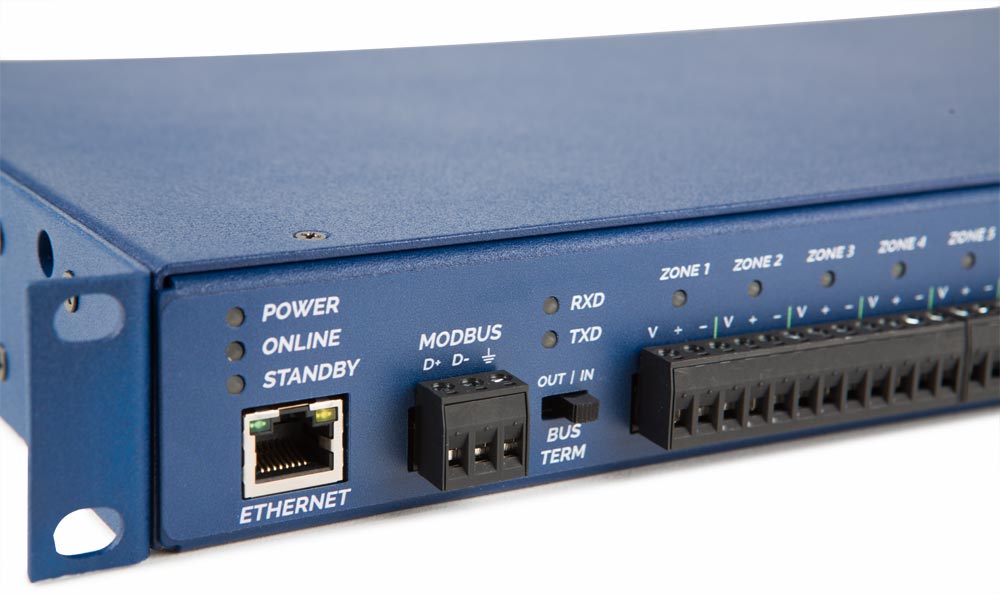

Modbus

RS485 and TCP/IP

LCD Specifications

Size: 10.4 x 1" | 264.2 x 25.8mm
Resolution: 1024 x 100 65K, TFT Color LCD

Warranty

3 years
